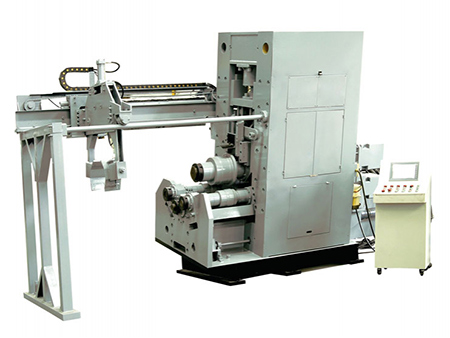

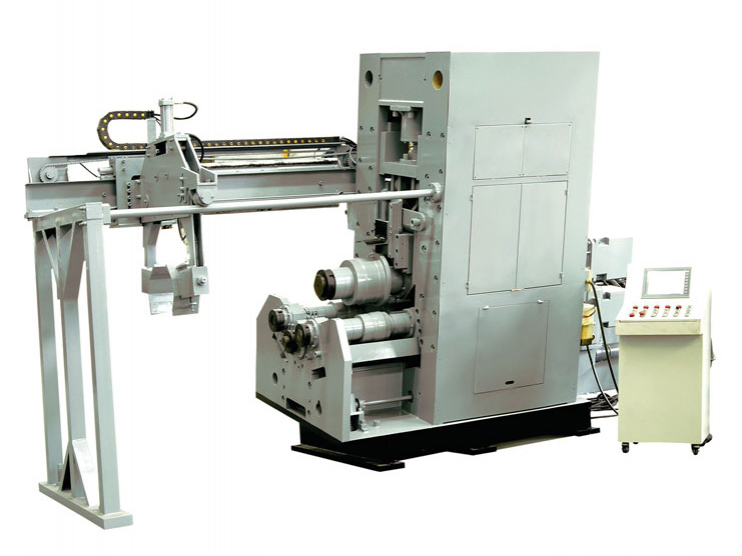

Coiler(Tube Rim Band Coiler) are developed to profile steel wheel rims used in cars, tractors, and construction vehicles. These roll formers are designed to meet roll forming demands for tubeless and profile steel wheel rims in a variety of specifications and shapes, simply by changing the dies.

Features
  • Our roll formers use a hydraulic transmission and PLC control. They offer a compact structure, easy operation, maintenance and repair, and a high production efficiency.
  • This rim roller can be equipped with an automatic loading/unloading device for automatic production according to customer needs.
Parameters
Main shaft diameter for mold Upper shaft 160mm Rim diameter 160-24inch
Lower shaft 120mm Upper shaft work pressure 667KN
Two side shaft 90mm Upper shaft downward stroke 130mm
Main shaft length for mold Upper shaft 402mm Upper shaft speed 2.5-100r/min
Lower shaft 485mm Lower shaft speed 3.8-150r/min
Two side shaft 485mm Side shaft speed 4.3-170r/min
Horizontal oil cylinder parameters Inner cylinder diameter 100mm Upper shaft torque 12800Nm
Travel 260mm Low shaft torque 8448Nm
Thrust (17MPa) 130KN Side shaft torque 7424Nm
Horizontal oil motor parameters Speed range 100-4000r/min System pressure 17Mpa
Rated torque (17MPa) 320Nm Machine size 1410*3387*2908(W*L*H)
Machine total gross 13T

All information about this equipment is subject to change without warning and is provided as reference only. Customization options are available, and the final machine will be supplied based on final technical agreements.
