Wheel Rim Vertical Wheel Rim Turning Lathe

Wheel Rim Vertical Wheel Rim Turning Lathe
Wheel Rim Vertical Wheel Rim Turning Lathe Wheel Rim Vertical Wheel Rim Turning Lathe

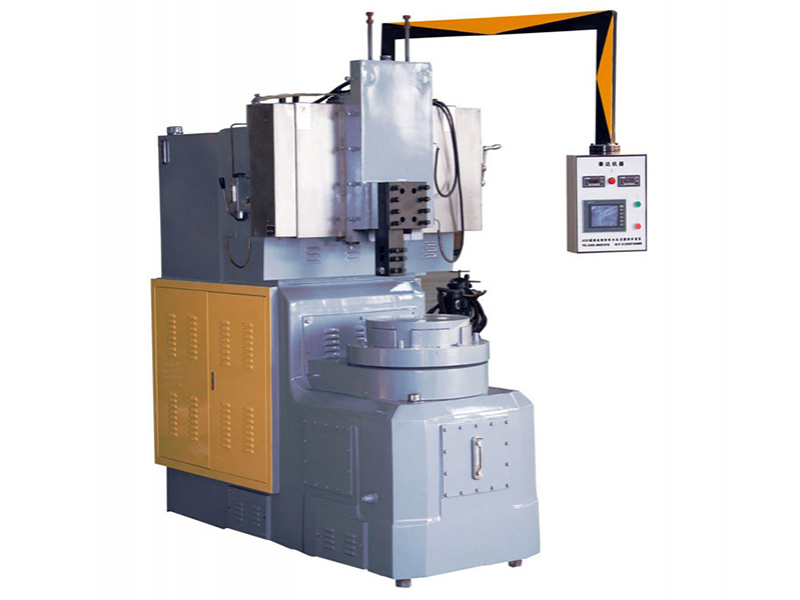

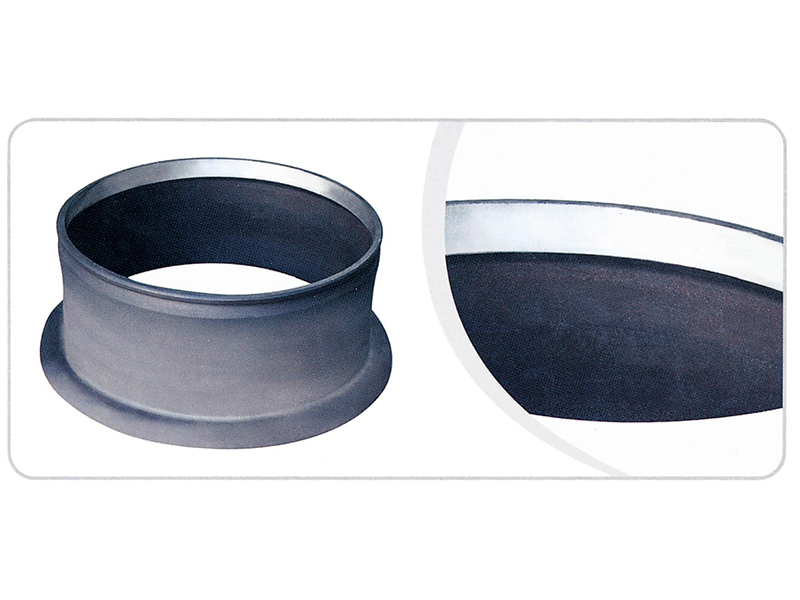

The wheel rim vertical wheel rim turning lathe is an upgraded lathe based on a prototype steel wheel rim vertical lathe. The body is manufactured with casting parts to enhance the overall support plate retraction function. In addition, a turning cutter adjustment device is designed to ensure turning operations of the steel wheel rim and tubeless steel wheel rim (ex-circle, inner-circle, and plane, outside and inside chamfer in single process) easier.

Parameters
Spoke height 30-160mm
Spoke diameter Ф350-Ф600mm
Middle hole diameter Ф140-Ф300mm
Production efficiency 40-50Pcs/Hour
Main shaft speed 125r/min
Mating power 15kw
Machine overall dimension 1860mm*1990mm*2150mm(L*W*H)
Total weight 4T
