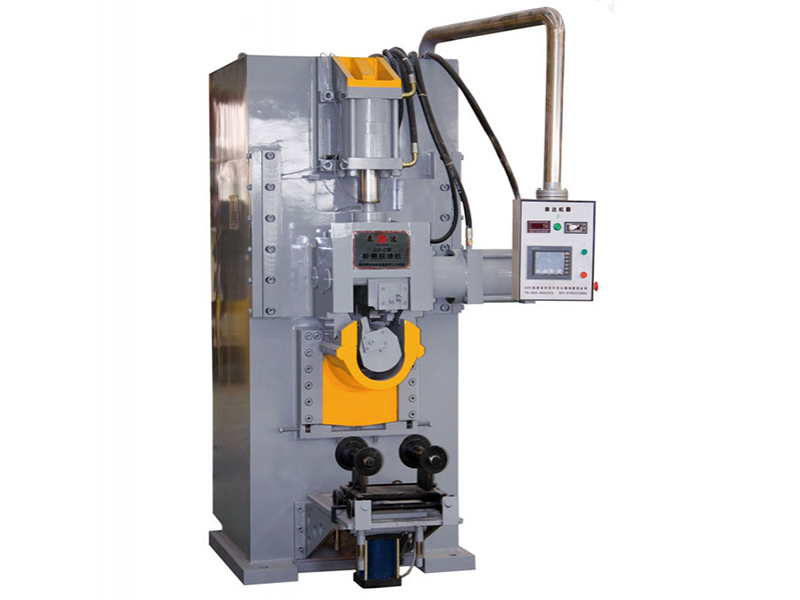

Trimmer Machine for Tube Wheel Rim

Trimmer Machine for Tube Wheel Rim
Trimmer Machine for Tube Wheel Rim Trimmer Machine for Tube Wheel Rim

The trimmer machine is used to remove the weld slag on a welded joint generated via butt welding of wheel rims used on different vehicles. By changing the cutters, it meets the slagging requirements for different steel wheel rims.

Features

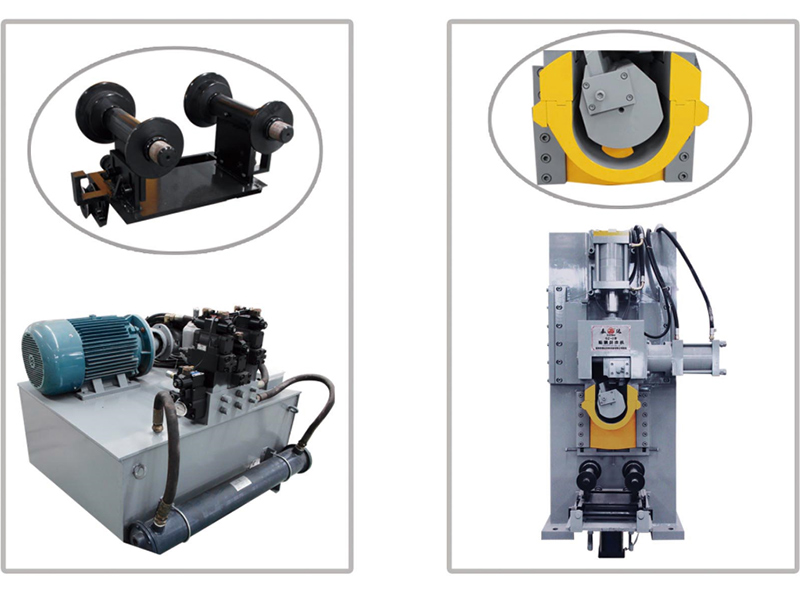

  • The trimmer machine features a hydraulic drive and PLC control, as well as a compact structure, easy operation, maintenance, and repair.
  • By replacing related clamps and cutters, the trimmer is easily able to handle weld slag on flange rings, lock rings, support rings, and other similarly shaped parts after butt welding is complete.
  • The trimmer efficiently solves weld slag removal and planishing problems, significantly improving production efficiency.
Parameters
Processable rim width 5.5"~9.0"mm

Processable rim diameter
16"~20"mm

Max scraping force
5000KN

Motor power
22KW

Overall size (W*L*H)
1450*1450*2500mm

Based size (W*L)
1450*1450mm

All information presented here is subject to change without warning and is provided as reference only. Customization services are available, and the final machine supplied will be in accordance with final technical agreements with the customer.
