Weld Trimmers, Planishers,End-Cutting Machine

Weld Trimmers, Planishers,End-Cutting Machine
Weld Trimmers, Planishers,End-Cutting Machine Weld Trimmers, Planishers,End-Cutting Machine

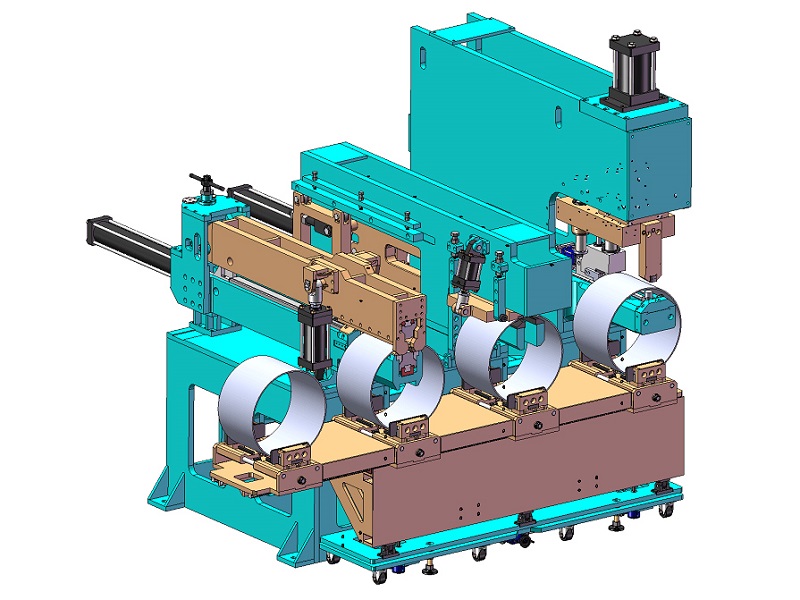

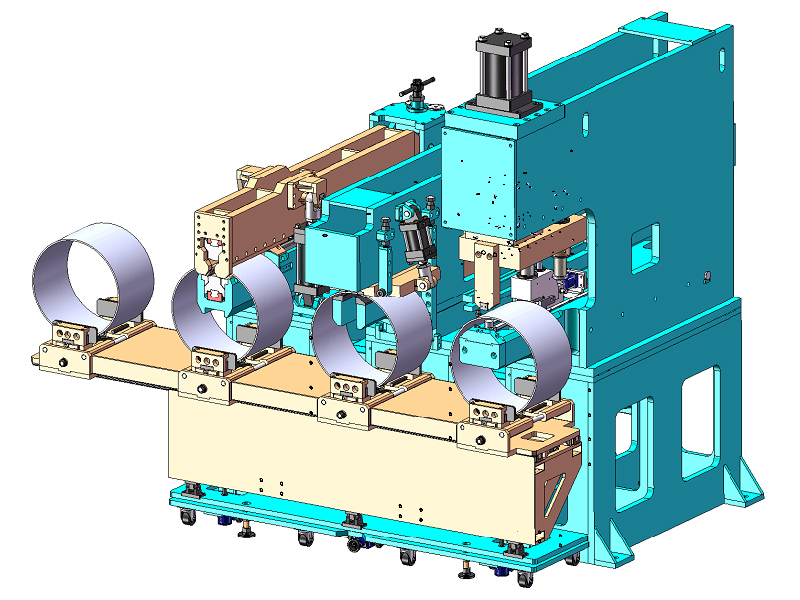

Weld trimmers, planishers,end-cutting machine are basic welding slag handling equipment essential to the production of tubeless wheel rims.

Functions
  • Weld trimmers are used for removing any weld remaining on internal and external surfaces of the weld joint to flatten it.
  • Planishers are installed to smooth and reinforce the weld joint after slagging.
  • Side trimmers cut off leftover material on both ends of the weld joint.
  • The automatic loading and unloading device is an optional accessory to carry out automatic operation according to customer requirements.
Features:
  • Integrated design: Weld trimmers/planishers/side trimmers come with a single-piece design and share one hydraulic system. This reduces the number of operators and saves factory space.
  • Automatic feeding and discharging device: this features a 3-process and 4-location design to achieve automatic workpiece conveyance and ensures a high production efficiency.
  • As an optional part, the automatic feeding and discharging device has a split design, making it easy to switch between manual and automatic modes.
  • The cutter and die on the main machine are easy to disassemble, allowing users to quickly change the die and the production of different wheel rims.
Parameters
Data
1 Main machine specification Trimmer BZJ-400B BZJ-600B BZJ-800B
Planisher GYJ-400G GYJ-600G GYJ-800G
Side trimmer DQJ-400D DQJ-600D DQJ-800D
2 Power supply AC 380V/3 phase/50HZ AC 380V/3 phase/50HZ AC 380V/3 phase/50HZ
3 Rated input power 37KVA 45KVA 55KVA
4 Max. clamping force for trimming 60KN 90KN 120KN
5 Max. trimming force 60KN 90KN 120KN
6 Max. clamping force for planishing 60KN 90KN 120KN
7 Max. planishing force 60KN 90KN 120KN
8 Max. cutting force 280KN 400KN 530KN
9 Cutting oil cylinder 125MM 200MM 220MM
10 Hydraulic system pressure 12MPA 12MPA 14MPA
11 Maximum rim band thickness 5MM 8MM 13MM
12 Rim band width range 220mm~350mm 300mm~500mm 450mm~800mm
13 Rim diameter range 280mm~450mm 400mm~650mm 600mm~1000mm

Our weld trimmers/planisher/side trimmers are consistently undergoing improvements and technological upgrade. Customization is available, and the above parameters are for reference only. Final data is subject to customer confirmation.
