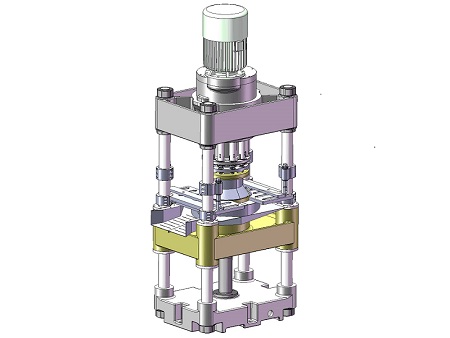

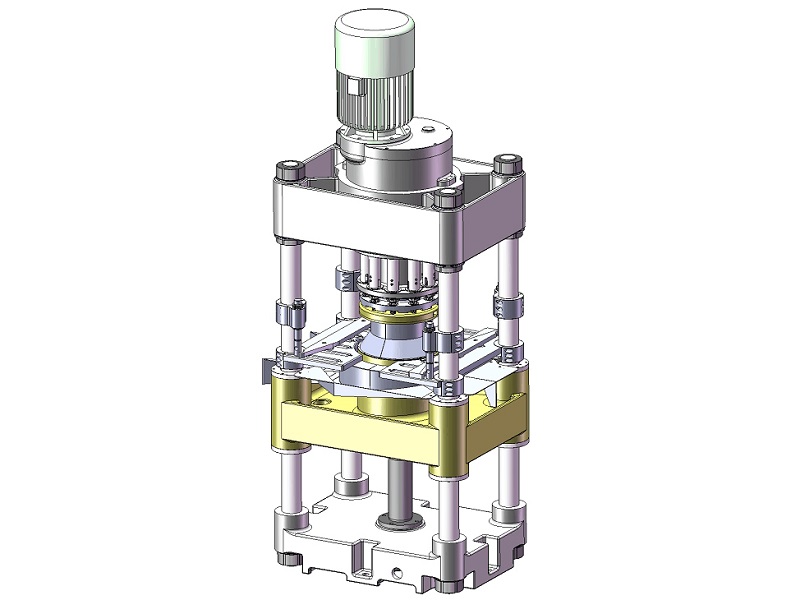

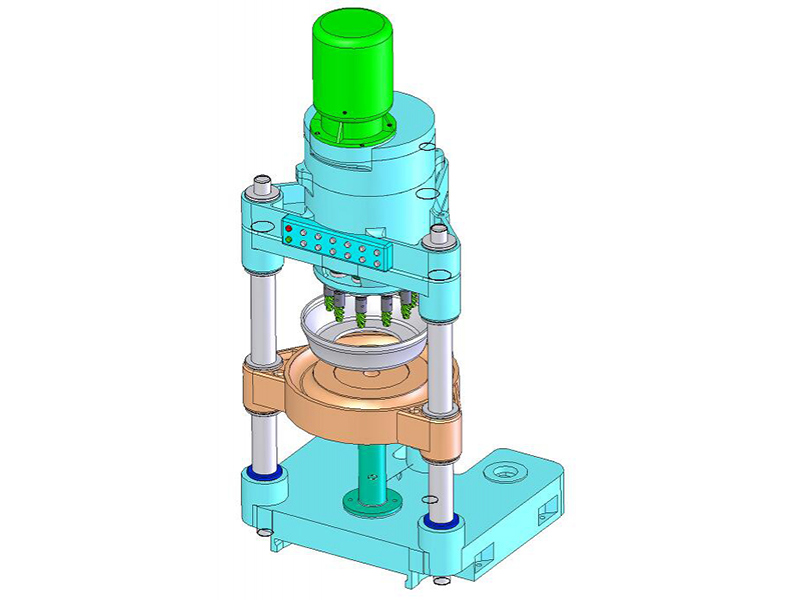

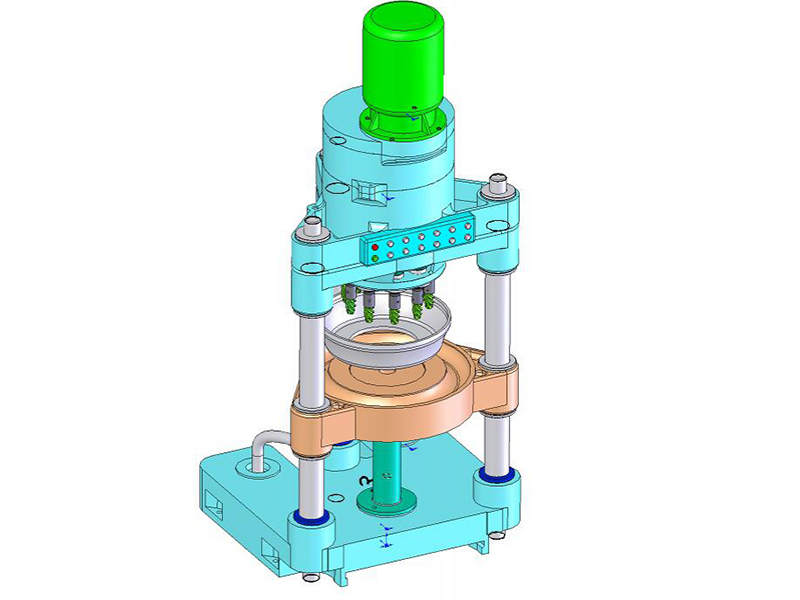

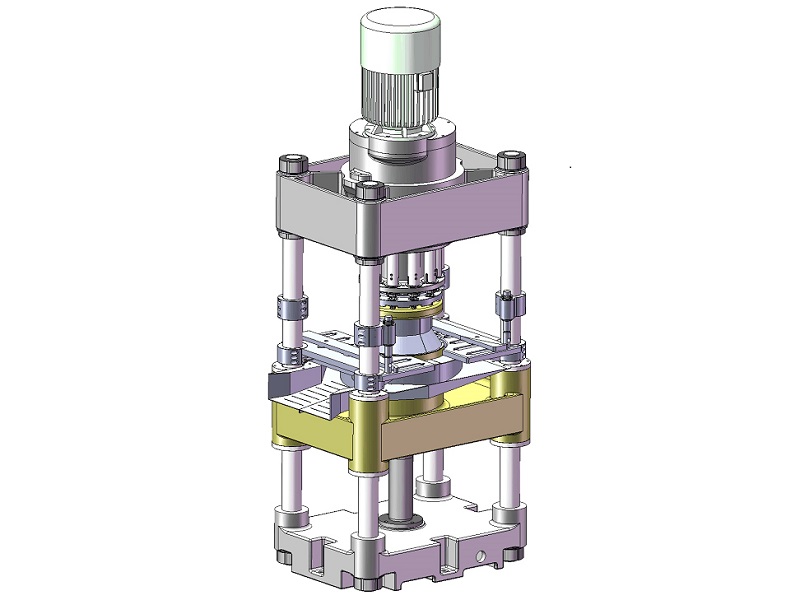

Drilling Machine(for steel wheel disk bolt hole )
Taizhi specially designs and manufactured this drilling machine for steel wheel disk bolt hole drilling. It is designed to perform drilling, reaming and countersinking processes, making it an essential piece of equipment for the steel disk manufacturing industry.
Features
- By incorporating drilling, reaming and countersinking tooling, the wheel disc bolt hole drilling, reaming and countersinking is completed in a single, hydraulically fed process. This significantly improves the product quality and working efficiency, as well as reduces labor intensity.
- Hydraulic feeding is controlled using an electric device and hydraulic stroke, ensuring that it is more reliable, accurate and safer to use this drilling machine in actual applications.
- Both positive and reverse machining are available.
Parameters
| Main shaft speed | 202r/min | Bolt hole circle | Number of screw holes |
Main shaft diameter |
Φ70mm | 335 | 10 |
Height of working life |
240mm | 285.75 | 10 |
| Work efficiency | 80--100Pcs/Hour | 285 | 8 |
Mating power |
11kw | 275 | 8 |
Rating power |
15"-24" | 222.25 | 6 |
Overall dimension |
1030*1060*2587 (L*W*H) |
203 | 5 |
Total weight |
3T | ||
All information presented here is subject to change without warning and is provided as reference only. Customization services are available, and the final machine supplied will be in accordance with final technical agreements with the customer.
