Double Metal Truck Brake Drum

  • Double Metal Truck Brake Drum
  • Double Metal Truck Brake Drum
  • Double Metal Truck Brake Drum

Double metal truck brake drums are 20 to 35% lighter than traditional gray iron casting brake drums, resulting in significantly improved braking effects and a longer service life.

These brake drums are manufactured from high strength steel shell and a high-performance cast iron friction ring. Both materials are processed using special technology, giving them high-strength, good thermal conductivity, and their light weight. The shell also has large heat dissipating area and excellent performance, helping to effectively eliminate cracking phenomenon caused by thick walls, poor heat dissipation, and high temperature differences. When using this type of brake drum, the truck reduces its chassis weight along with fuel consumption. This also enhances the safety of the truck.

Wheel production equipment
  • Framed Hydraulic Press
  • Four Column Hydraulic Press
  • Flow-spin-forming Equipment
  • Roll Forming Machine
  • Vertical Turning Lathe, Gantry Type
  • Drilling Machine (for steel wheel disk bolt hole)
  • CNC horizontal turning lathe
  • Centrifugal Casting Machine
Comparison between double metal truck brake drums and traditional brake drums
Double Metal Truck Brake Drum

1. Structure

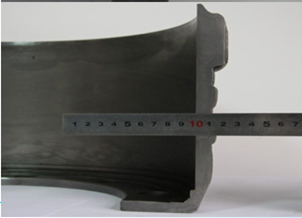

The double metal truck brake drum shell is made of high strength steel and its interior adopts abrasion-resistant cast alloy iron. The double metal layers are combined using a special metallurgy composite technology. Therefore, the overall performance is improved in many ways.

2. Thickness
The wall thickness of the double metal truck brake drum is 8-10mm thinner than traditional brake drums that operate with the same specifications. It features the advantages of a compact structure, light weight, and fast heat dissipation.

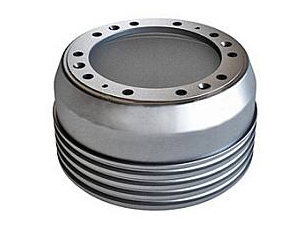

  • Double Metal Truck Brake DrumDouble Metal Truck Brake Drum

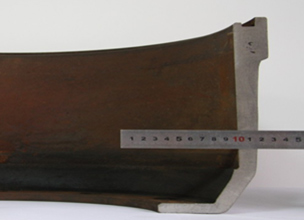

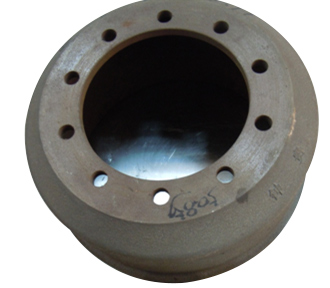

  • Traditional brake drumTraditional brake drum

3. Weight
Double metal truck brake drums are over 25% lighter than traditional brake drums with the same specification, thus making them considerably more fuel-efficient!

  • Double Metal Truck Brake DrumDouble Metal Truck Brake Drum
  • Traditional brake drumTraditional brake drum

4. Safety Performance

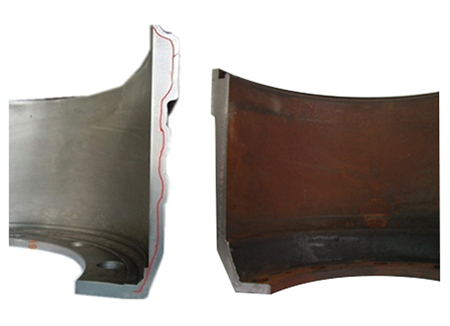

The inner wall of the double metal truck brake drum will not crack until it experiences a 22mm compressive deformation, something that would require an extreme amount of force. Additionally, the steel shell will never crack. However, traditional brake drums will break into pieces following a compressive deformation of just 5mm.

5. Manufacturing Technology
The double metal truck brake drum shell adopts a special machine for plastic forming. By incorporating loading and unloading, an assembly line, conveying, distributing, and positioning devices, unmanned, and automatic production is achieved, minimizing operating costs.

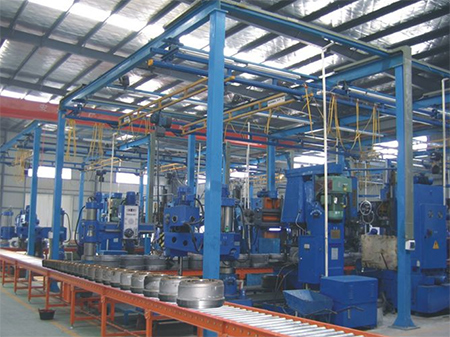

  • Double Metal Truck Brake Drum

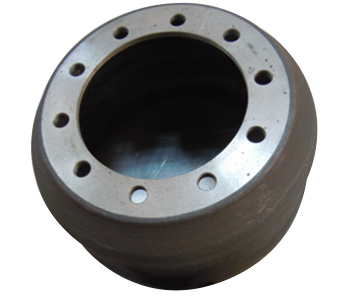

  • Double Metal Truck Brake Drum

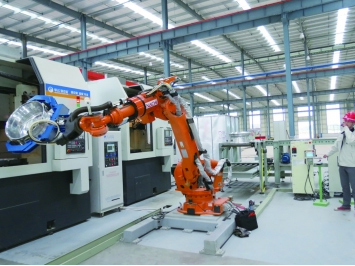

  • Double Metal Truck Brake Drum

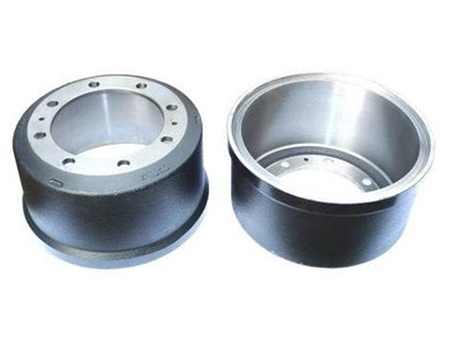

  • Double Metal Truck Brake Drum

6. Additional Value
Due to its high strength and durability, the double metal truck brake drum has been widely praised by customers. It is estimated that the added value of these drums is 220%-320% that of traditional brake drums.

Manufacturing technology
  • Feeding
  • Locating hole punching
  • Rough and precise flow forming
  • Roll forming
  • Punching center hole and blot hole
  • Levelling
  • Centrifugal Casting
  • Turning center hole, outer plane, outer cycyle and chamfer
  • Turning inner plane and inner cycle
  • Bolt hole expanding and chamfering or rounding
  • Product detecting and marking
  • Unloading
Processes
  • Steel plate feeding

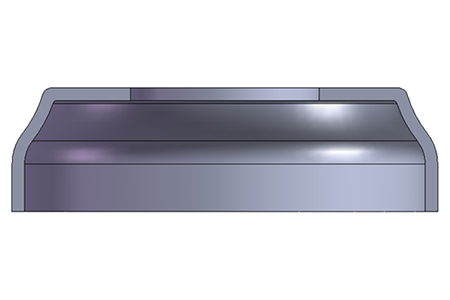

    Double Metal Truck Brake Drum

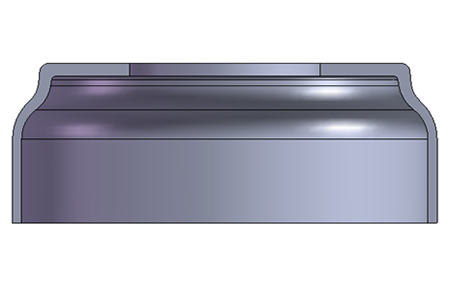

  • 1st rough spinning
    Double Metal Truck Brake Drum

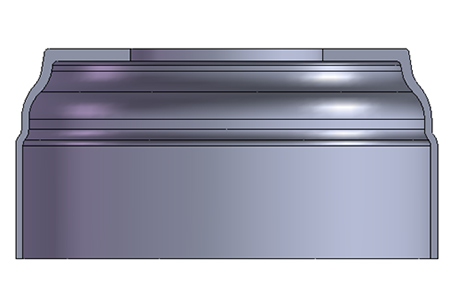

  • Roll forming
    Double Metal Truck Brake Drum

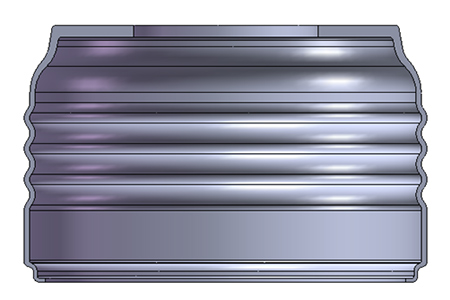

  • 1st Precision spinning
    Double Metal Truck Brake Drum

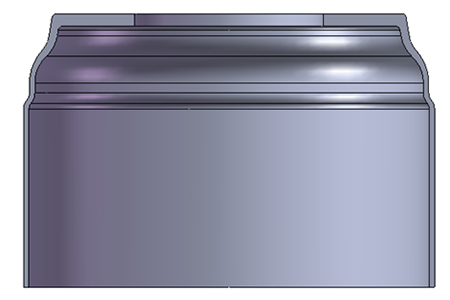

  • 2nd rough spinning
    Double Metal Truck Brake Drum
  • 2nd Precision spinning
    Double Metal Truck Brake Drum

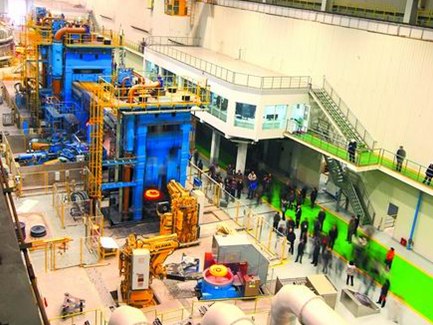

Double metal truck brake drum production equipment and estimated investment
Considering an estimated capacity of 400-500 pieces/8h, the purchase investment of the double metal truck brake drum is conservatively estimated to be 6 million to 8 million.
No. Process Equipment Power Quantity
Main motor power Hydraulic station total power Total power input
1 Feeding 1000T Framed Hydraulic Press 45 45 1
2 Punching 500T Four Column Hydraulic Press 30 30 1
3 Roughing spinning Flow-Spin-Forming Equipment 132 34.5 166.5 1
4 Precision spinning Flow-Spin-Forming Equipment 132 34.5 166.5 1
5 Roll forming Roll Forming Machine 110 110 1
6 Punching hole and bolt hole 1000T Four Column Hydraulic Press 45 45 1
7 Leveling 1000T Four Post Hydraulic Press 45 45 1
8 Centrifugal Casting Outside the production line
9 Outer plane, center hole, chamfer Vertical Turning Lathe 11 5 16 1
10 Forming Vertical Turning Lathe 11 5 16 1
11 Bolt hole and chamfer or fillet Drilling Machine 11 2.2 13.2 2
12 Product detecting and marking
13 Completed
