Steel Wheel Disk Vent Hole Punching Press

Steel Wheel Disk Vent Hole Punching Press

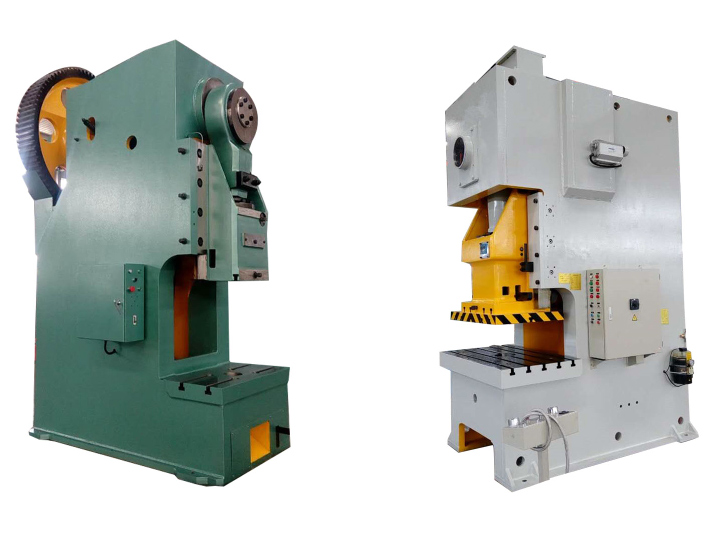

The steel wheel disk vent hole punching press is specially designed for vent hole punching on automobile steel wheel disks. It is primarily classified as traditional mechanical clutch and new pneumatic clutch types. Users can choose the right hole punching press according to their needs, or install an automatic indexing mechanism to improve the punching capacity.

Parameters
Model JB21-100L JE21-100L JB21-160L JD21-160L JE21-160L JE21-200L JD21-250L JE21-250L
Main Parameters
Nominal force(KN) 1000 1000 1600 1600 1600 2000 2500 2500
Nominal force stroke (mm)8 8 8 8 8 10 10 8
Slider stroke (mm) 20/100 140 40/160 160 160 180 180 180
Slider strokes (times / min) 70 50 42 45 35 35 35 28
Maximum mold height (mm) 650 650 650 650 650 650 650 650
Mounting height adjustment amount (mm) 85 100 120 120 120 120 120 120
Throat depth (mm) 325 320 300 375 375 400 425 425
Slide block size (mm) Front-Back 260 410 370 475 475 490 525 520
Left-Right 335 560 510 700 700 720 740 740
Workbench size (mm) Front-Back 400 430 550 680 625
Left-Right 690 980 1100 1200 1250
Mold hole size (mm) Diameter Φ50 Φ50 Φ80 Φ65 Φ65 Φ65 Φ70 Φ70
Depth 85 70 80 80 80 90 80 80
Height between workbench and ground (mm) 150 170 200 200 200 220 220 220
Slider center distance from front (mm) 130 170 185 200 200 215 230 230
Main motor power (kW) 7.5 11 15 15 15 18.5 22 22
Clutch form Rigid clutch Dry pneumatic clutch Rigid clutch Dry pneumatic clutch Dry pneumatic clutch Dry pneumatic clutch Dry pneumatic clutch Dry pneumatic clutch
Machine overall dimension (mm) Front-Back 1815 1735 2010 2060 1850 2270 2250 2250
Left-Right 1270 1300 1610 1340 1450 1340 1500 1500
Height between machine and ground (mm) 2950 2950 2680 3280 3450 3650 3700 3700
