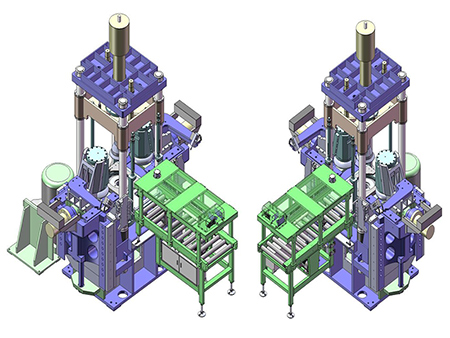

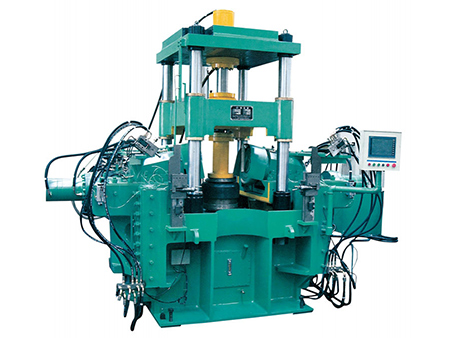

Flow-Spin-Forming Equipment

Flow-Spin-Forming Equipment
Flow-Spin-Forming Equipment Flow-Spin-Forming Equipment Flow-Spin-Forming Equipment Flow-Spin-Forming Equipment

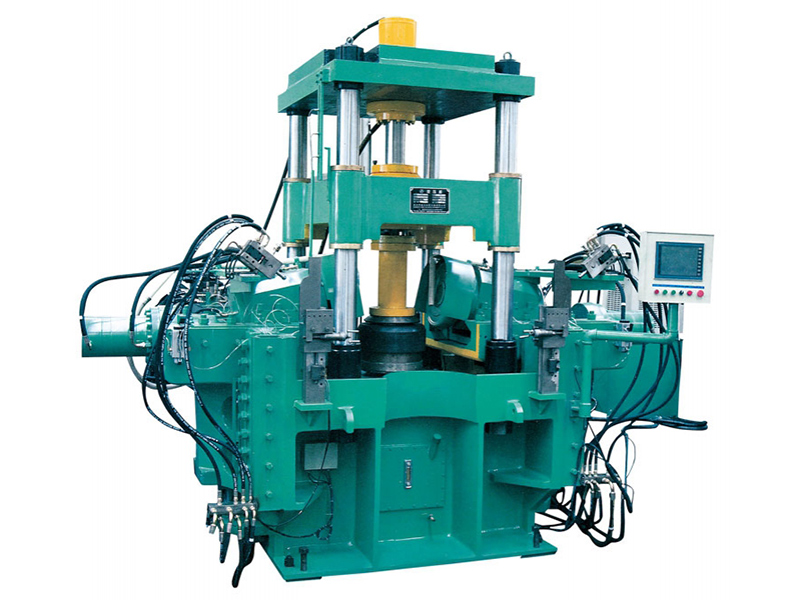

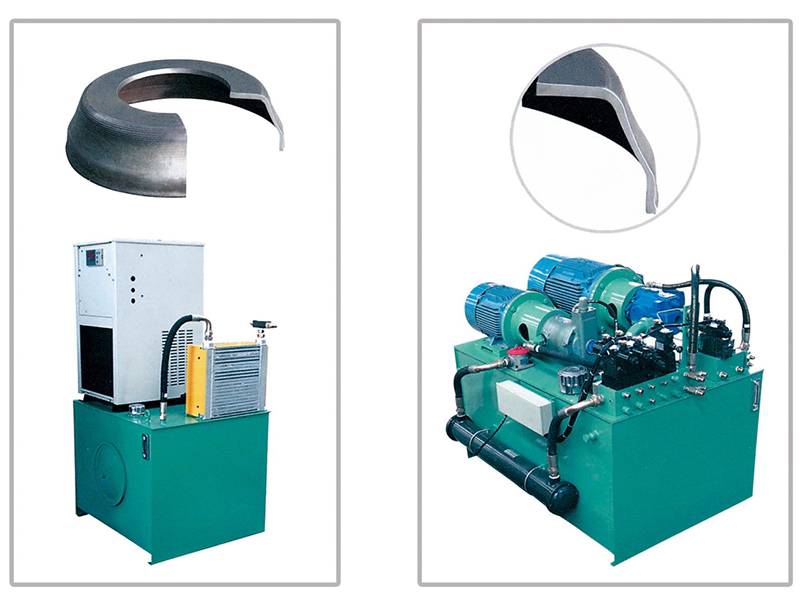

Flow-spin-forming equipment is suitable for shell or cylindrical flow-spin forming of wheel discs, wheel rims, steel wheels, aluminum alloy wheels, aluminum alloy wheel discs, double metal truck brake drum shells, wheel-side reducer shells and other items. Materials available to choose from include steel and forging or casting aluminum alloy.

This spinning former, with no-cutting metal forming technology, is also able to handle countless nonferrous metal discs or square blanks. The spun product features a uniform wall thickness thinning and complicated shapes.

We welcome customer samples or drawings in technical exchanges and discussion before production begins.

Features

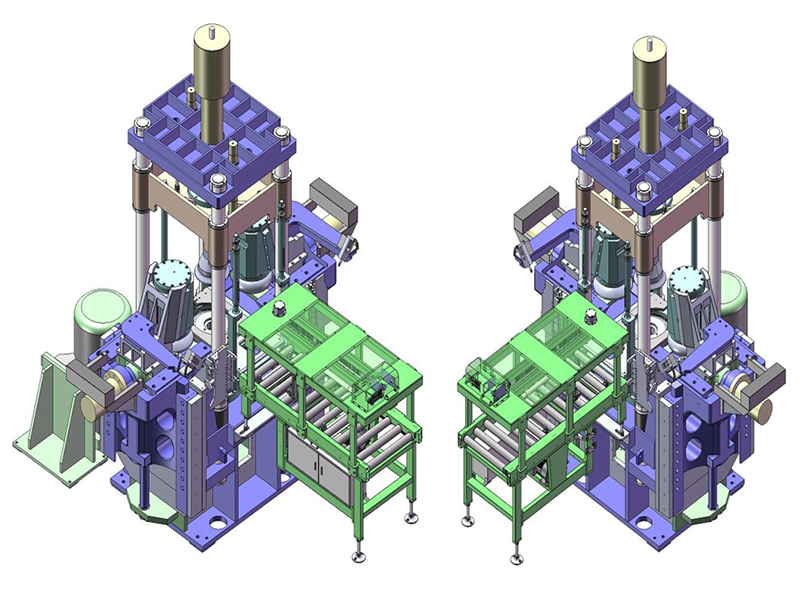

  • Flow-spin-forming equipment has a vertical structure, offering an exceptional durability.
  • Two spinning levels: primary and fine spinning ensures the spun workpiece features a stable and exceptional quality.
  • Spindle spinning is driven by a 160-kW motor with an inverter used for speed regulation to ensure stable speed and operation.
  • The use of a servo valve ensures the spinning workpiece features a stable quality and reliable, exceptional performance.
  • The main control system uses a PLC and touch screen and stores up to 100 sets of die parameters.
  • This spin forming machine allows for the adjustment and setting of numerous movements and parameters.
  • By changing different spinning dies, different wheel rim sizes are produced.
  • Due to the spinning process, the wheel rim section thickness is adjustable. This not only improves the wheel rim dynamic balance and surface thickness, but also saves steel materials and reduces the cost, leading to a higher market value.
  • Flow-spin-forming equipment features an advanced, reliable structure and a stable performance, making it a great replacement for similar internationally sourced products.
Parameters
(This data is for reference only. Actual data depends on customer data and confirmation.)
No. Items XYJ-2 XYJ-3
1 Spindle speed 0-220r/min(Frequency) 0-230r/min(Frequency)
2 Max diameter of blank Φ650mm Φ800mm
3 Min diameter of blank Φ350mm Φ350mm
4 Max thickness of blank 16mm 20mm
5 Height of spinning products 160mm ≤400mm
6 Main motor power 132KW 160KW
7 PLC and HMI Mitsubishi /SIEMENS Mitsubishi /SIEMENS
8 Frequency converter 132KW DANFOSS/FUJI 160KW DANFOSS/FUJI
9 Industrial oil cooler Integration8P+2P Integration 8P+2P
10 Power supply 380VAC/50HZ 380VAC/50HZ
11 Contactor Schneider Schneider
12 Air switch Schneider Schneider
13 Thermal relay Schneider Schneider
14 Intermediate relay SIEMENS SIEMENS
15 Main oil pump SUNNY SUNNY
16 Electromagnetic valve Taiwanese brand Taiwanese brand
17 Spindle material 40Cr 40Cr
18 Wheel material D2 D2
19 Mold material Cr12mov Cr12mov
