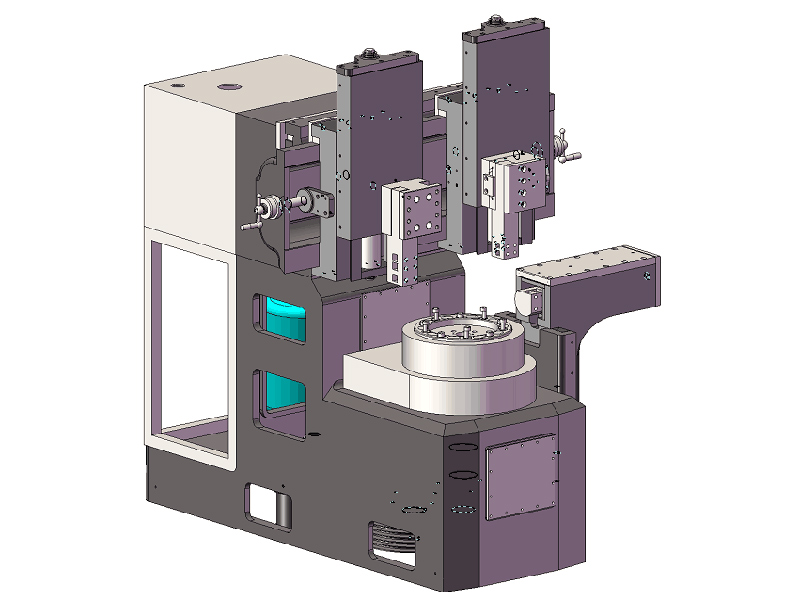

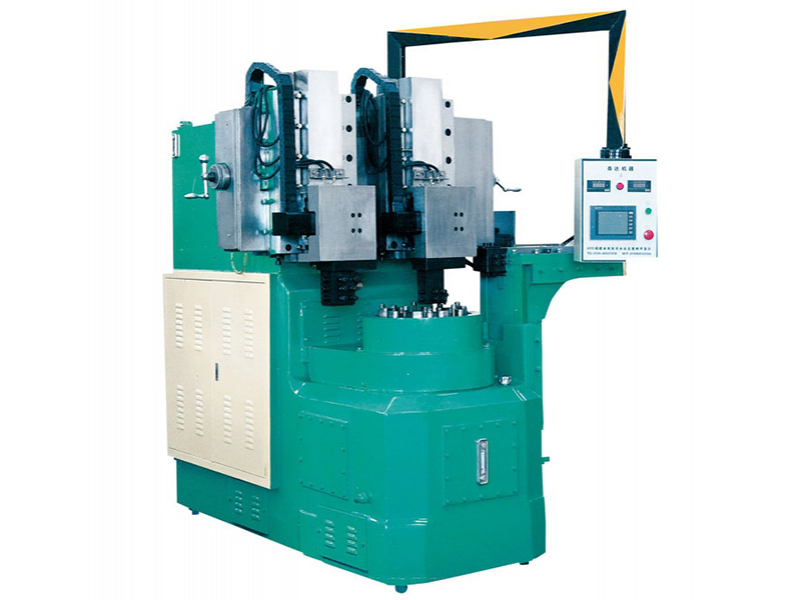

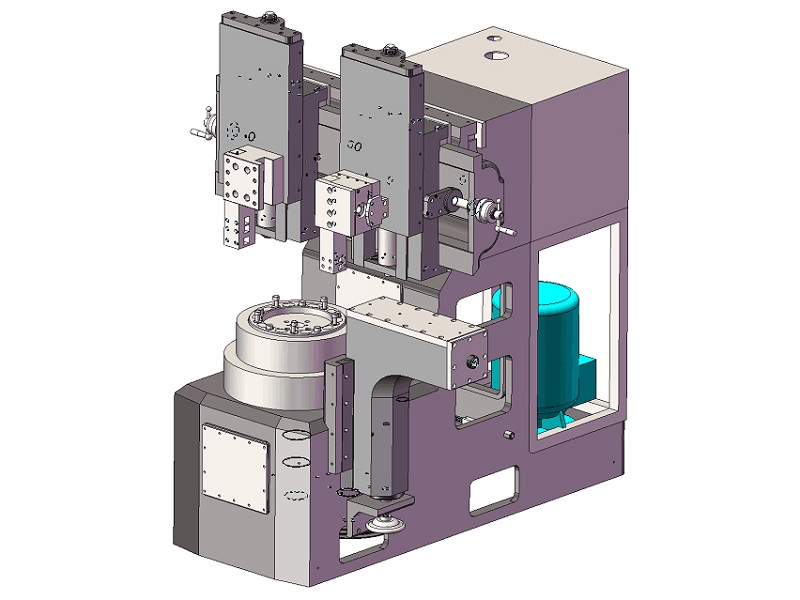

Wheel Disk Vertical Wheel Disc Turning Machine

Wheel Disk Vertical Wheel Disc Turning Machine
Wheel Disk Vertical Wheel Disc Turning Machine Wheel Disk Vertical Wheel Disc Turning Machine Wheel Disk Vertical Wheel Disc Turning Machine

Taizhi’s Wheel Disk Vertical Wheel Disc Turning Machine uses a PLC digital control and touch screen human-machine interaction, an automatic hydraulic lock, unlock and multi-mechanism feeding. It is exceptionally popular due to its outstanding production efficiency and highly accurate performance and quality.

Parameters
Wheel rim diameter Ф350-Ф500mm
Wheel rim height 70-250mm
Wheel rim travel 300mm
Main shaft speed 225r/min
Production efficiency 50-60Pcs/Hour
Mating power 18KW
Work Range 16"-24"
Machine overall dimension 1860mm*1990mm*2150mm(L*W*H)
Total weight 4T
