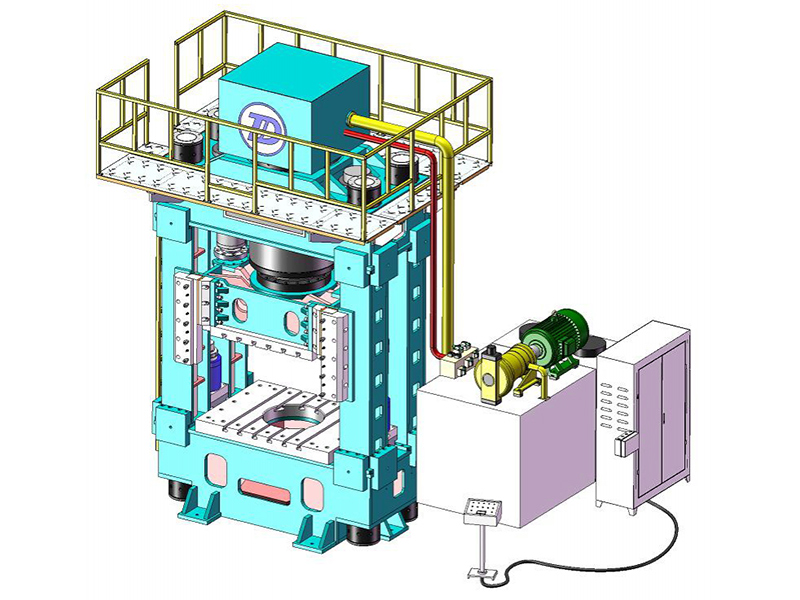

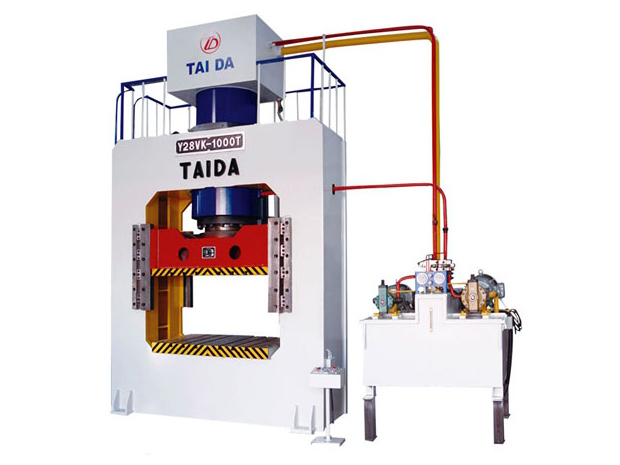

Framed Hydraulic Press

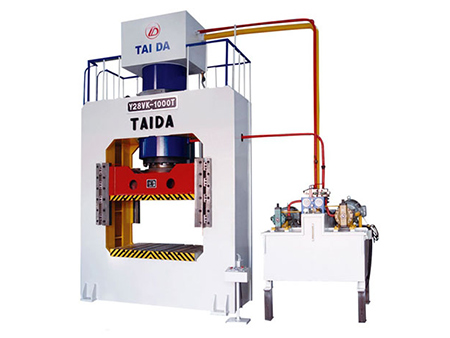

Framed Hydraulic Press

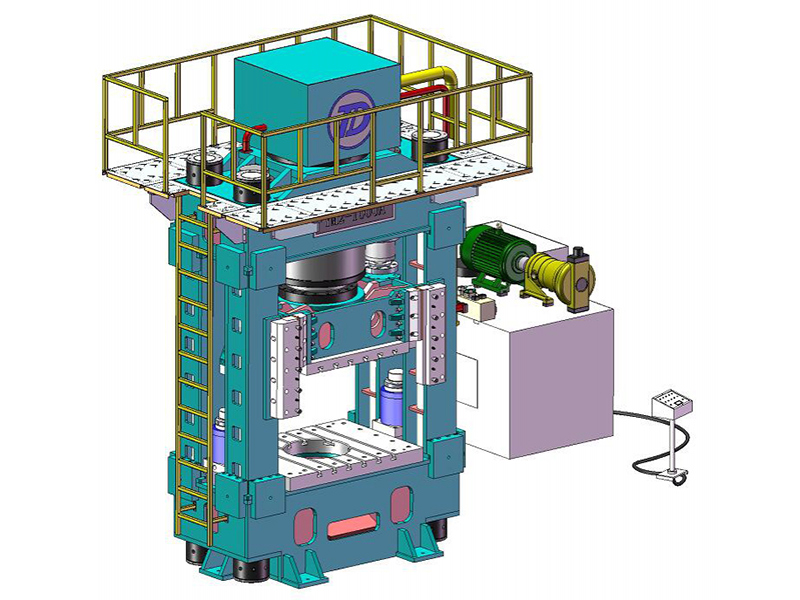

Framed Hydraulic Press Framed Hydraulic Press Framed Hydraulic Press

The framed hydraulic press is primarily used in wheel disc and rim and lock ring/flange ring manufacturing fields for forming, expanding, flaring, punching hole, and feeding processes. Due to specific machine features, simply change the tools used, and users can carry out strengthening, blanking (optional buffer device), bending, flanging, cold extruding and other punching processes of metal materials, as well as levelling, press-fitting and compression forming of powder, abrasive products, plastic products and insulating materials.

Features
  • The machine body is optimally designed with computers. The all-steel plate welded frame structure produces an excellent precision rating ability.
  • Hydraulic control utilizes a cartridge valve integrated system, featuring a reliable operating, large flow, small inside leakage, long service life, highly integrated system and reduced connecting line and leakage points.
  • Button centralized control is used, and 3 operating modes are available: adjustable, manual and semi-automatic (fixed-stroke single-pass and fixed-pressure single pass).
  • A 4-corner and 8-direction guide rail allows for an excellent guiding accuracy and a strong load-deflection resistance. Central lubrication is used.
  • The sliding block moves at a high speed and features an outstanding work efficiency.
  • The sliding block working pressure, no-load quick operation stroke range and slow load operating are all adjustable according to processing technology.
Technical parameters
Project Unit Model
YD34-100 YD34-160 YD34-200B YD34-250 YD34-315 YD34-500 YD34-630 YD34-800 YD34-1000 YD34-1250 YD34-1600 YD34-2000 YD34-2500
Nominal force KN 1000 1600 2000 2500 3150 5000 6300 8000 10000 12500 16000 20000 25000
Ejection force KN 800 1000 -- 800 400 -- 1000 1000 1000 2000 -- -- --
Slider Stroke mm 800 800 710 800 800 900 900 900 900 900 900 900 1200
Ejection stroke mm 350 350 -- 350 250 -- 350 350 350 300 -- -- --
Open height mm 1100 1100 1100 1200 1200 1500 1500 1500 1500 1500 1800 1800 2500
slider speed Idle descending mm/s 150 150 200 200 150 180 200 200 250 150 200 150 150
Processing mm/s 8-15 6-12 8-18 6-12 8-15 8-16 8-16 8-19 8-20 8-20 8-16 8-16 5-12
Return stroke mm/s 100 100 150 120 140 160 150 170 200 200 160 100 120
Ejection Speed Ejection mm/s 70 25 -- 50 100 -- 80 100 80 80 -- -- --
Return mm/s 140 100 -- 100 150 -- 220 240 220 220 -- -- --
Work table dimensions Front-Back mm 1200 1200 1200 1200 1500 2200 1800 2200 2000 1800 2000 3000 2800
Left-Right mm 1200 1200 1200 1200 1200 1500 1400 1500 1400 1600 1800 2200 2400
Motor power kW 11 11 22 22 22 45 46 70 91 125 128 180 160
